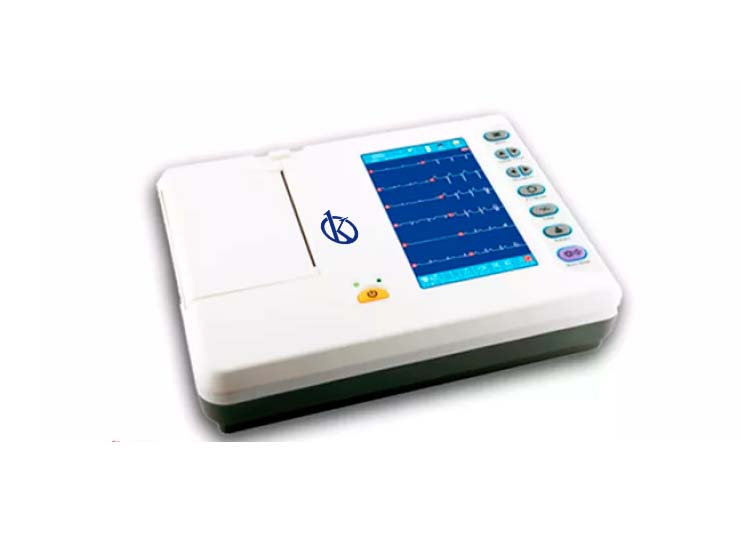

6 Channel Smart Hospital ECG Manufacturing Machine Monitoring Dynamic Holter ECG Systems YR05161

Manufacturer: Kalstein


This new 6-channel YR ECG will bring you the power of advanced and easy-to-use technologies, multiple forms of data management, as well as accurate measurements and interpretations, which can improve the diagnostic confidence of cardiologists.

Technical description
Model YR05161
Guide 12 standard conductors
Input dynamic range ยฑ 10Vpp
Patient current leak <10ฮผA
Calibration Voltage 1mV ยฑ 2%
Tension Tolerance : โ‰ฅ ยฑ 500mV
Time constant โ‰ฅ3.2s
Frequency response 0.05 ~ 160Hz (-3db)
Noise level <15ฮผVp-p
Input circuit current 0.050.05 ฮผA
Sensitivity 2.5, 5.10, 20mm / mV
Interchannel interference โ‰ค0.5mm
Paper speed 6.25,12.5, 25.50mm / s (ยฑ 3%)
Patient current leak <10ฮผA
AC filter 50Hz / 60Hz
EMG filters 25Hz / 45Hz
Anti-drift filter 0.15 Hz (adaptive)
CMMR โ‰ฅ120dB (with AC filter)
Sensitivity Valve โ‰ค20ฮผV
Input impedance โ‰ฅ50Mฮฉ
Work Modes MAN, AUTO, ANALYSIS modes
Acquisition of Potential Customers 12 bits / 1000 Hz (synchronously 12 leads)
Input Circuit floating;ย protection circuit against defibrillator effect
Screen 7 inch LCD

Additional information

Weight 8 kg
Dimensions 21 × 40 × 34 cm
