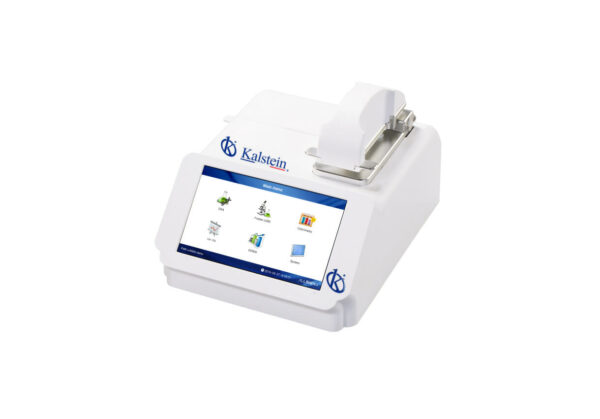

Micro-Spectrophotometer YR06033-1

ManufacturerKalstein

Description

The YR06033-1 Micro-Spectrophotometer is an innovative full-spectrum UV-Vis spectrophotometer, ideal for laboratories that require precision and speed in detecting nucleic acids, proteins, and bacterial growth. With a wavelength range from 200 to 800 nm and the ability to operate with sample volumes as small as 2 µl, this device enables versatile and detailed analysis in fields such as molecular biology and microbiology. Its HD 7-inch touchscreen and integrated Android operating system provide smooth navigation and autonomous use, eliminating the need for PC connection. Additionally, its 2048-element linear CCD detector and xenon lamp ensure precise results in just five seconds.

Market Price

The YR06033-1 is competitively priced between $10,510 and $10,515 USD, making it a valuable investment for research laboratories and life sciences. This price, combined with the device’s advanced technology and intuitive design, makes it a strategic and cost-effective option. If you’d like to know how the YR06033-1 can meet your laboratory’s specific needs, you can quickly and easily request a personalized, no-obligation quote through the Kalstein Plus platform.

Frequently Asked Questions

  • Is it necessary to connect the YR06033-1 to a computer?
    No, this model operates independently thanks to its Android system and touchscreen.
  • What is the minimum sample volume required?
    Only 0.5 to 2 µl is needed, significantly saving reagents.
  • How fast is the measurement time?
    Measurements take less than five seconds, optimizing laboratory workflow.

Advantages and Disadvantages

The YR06033-1 offers multiple advantages, including its ability to measure nucleic acids and proteins in minimal samples, its auto-shutdown feature for energy savings, and high accuracy in analysis with a spectral resolution of ≤3 nm. However, as a potential drawback, some laboratories may require additional data output options, although this model includes USB output for data storage and transfer.

Field Use

This micro-spectrophotometer is ideal for research laboratories that need rapid analysis of DNA, proteins, and bacterial growth, optimizing culture monitoring processes and purity evaluation. Its OD600 function for measuring bacterial concentration makes it an essential tool in microbiology research, enabling precise and quick determination of cell growth.

Recommendations

To maximize the performance of the YR06033-1, it is recommended to update its software periodically via the USB port and to keep the device in a dust-free environment to extend its lifespan. Take advantage of its data export options for advanced result analysis. Request your personalized quote now through Kalstein Plus and discover how the YR06033-1 Micro-Spectrophotometer can transform your laboratory analyses, providing high-precision results in every test.

Technical Specifications

Model YR06033-1
Wavelength range 200-800 nm
Minimum sample size 0.5-2.0 μl
Path length 0.2mm 1.0mm
Light source Xenon flash lamp
Detector type 2048-linear CCD array
Wavelength accuracy 1 nm
Spectral resolution ≤3 nm (FWHM at Hg546 nm)
Absorbance precision 0.003Abs
Absorbance accuracy 1 % (7.332Abs at 260 nm)
Absorbance range 0.04 – 90A
Detection range 2~4500 ng/μl (dsDNA)
Measurement time <5 S
Data output USB
Sample pedestal material Aluminum alloy and Quartz fiber
Operating voltage DC 24V 2A
Operating power 25 W
Standby power 5 W
Dimension (W×D×H) mm 210×268×181
Weight 2.8 kg
Software compatibility Android system
Light source LED
Wavelength range 600±8 nm
Abosorbance range 0-4 A

Additional information

Weight 9,6 kg
Dimensions 50 × 49 × 31 cm
