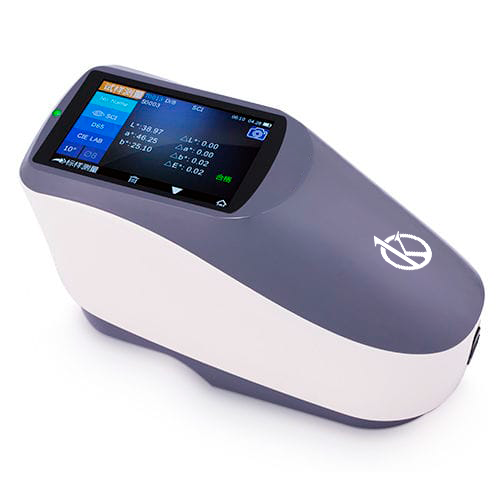

Plus 45/0 8mm Spectrophotometer YR05505

ManufacturerKalstein

Description

The Spectrophotometer Plus 45/0 8 mm YR05505 from Kalstein is an advanced and affordable solution for color control in sectors such as paints, inks, textiles, garments, printing, and dyeing. This device features a customizable 8 mm aperture (also available in 4 mm and 2 mm options), adapting to various industrial and quality requirements. With a 45/0 lighting system that complies with international standards such as CIE No.15, ISO 7724-1, ASTM E1164, and others, and a combined LED light source, the YR05505 delivers reliable performance in color transfer and quality control. Its 3.5-inch color LCD screen and compact design (184x77x105 mm) make this spectrophotometer easy to use and transport, ideal for both laboratory and field applications.

Market Price

The YR05505 spectrophotometer is available at a competitive price range, costing approximately $3,680 to $3,690 USD, depending on the required accessories and customizations. Its quality-to-price ratio makes it an attractive investment for companies seeking precision in their color analysis and optimization in their production processes. If you would like a detailed quote tailored to your industry specifications, you can request one or generate an automatic quote through Kalstein Plus, making the acquisition process easier.

Frequently Asked Questions

  • What aperture size does the YR05505 offer?
    This model offers an 8 mm aperture by default, but it also allows 4 mm and 2 mm options, making it adaptable for various color control applications.
  • How long does the light source last?
    The LED light source is designed to last 5 years, with a capacity to perform over 3 million measurements.
  • Can the YR05505 store data?
    Yes, it has a standard memory that can store up to 500 reference data points and 20,000 samples, allowing efficient and organized record-keeping.

Advantages and Disadvantages

The YR05505 stands out for its precision in color analysis, its compatibility with a wide range of color spaces (CIE LAB, XYZ, LCh, among others), and its concave grating spectral separation system that ensures accurate readings. Additionally, its USB interface and capability to connect to an optional microprinter enable simple data transfer and documentation. One disadvantage to note is that, being designed for specific color applications, it may not be suitable for spectral analysis outside the visible range (400-700 nm), limiting it to certain industries.

Field Applications

The YR05505 spectrophotometer is especially useful for monitoring color accuracy in the production of textiles, paints, and inks, where even small variations can affect the final product’s quality. Thanks to its portable and robust design, the device allows for quick and reliable measurements directly on the production floor, streamlining quality control. It is also an excellent tool for laboratories, providing precise and consistent results in sample evaluations and metamerism tests.

Recommendations

To maximize the performance of the YR05505, it is recommended to perform periodic calibrations and store the device in a dust- and moisture-free environment when not in use. Its lithium battery ensures up to 5,000 measurements over 8 hours, so regular recharging is suggested to ensure continuous testing. Request a personalized quote or quickly generate your own quote on Kalstein Plus and experience how the Spectrophotometer Plus 45/0 8 mm YR05505 can improve the precision and efficiency of color processes in your industry.

Technical Specifications

Model YR05505
Illumination/Observation system 45/0(45 ring-shaped illumination, vertical  viewing);

Comply with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893、GB/T 18833

Features Common spectrophotometer with customized one aperture, like 8mm aperture and apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control.
Integrating Sphere Size Φ48mm
Light Source Combined LED Light
Spectral separation device Concave Grating
Detector 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm
Wavelength Pitch 10nm
Half Bandwidth 10nm
Reflectance Range 0~200%
Measuring Aperture Customized One Aperture:MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm;SAV:Φ2mm/Φ3mm;
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB,βxy
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter)
Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter),

YI(ASTM D1925,ASTM 313),

MI (Metamerism Index),

Staining Fastness, Color Fastness, Color Strength, Opacity,

Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Display Data Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Measurement Time About 1.5s
Repeatability Spectral reflectance: MAV,Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%)

Chromaticity value:MAV,within ΔE*ab 0.05( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Inter-instrument Error Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Measurement mode Single Measurement, Average Measurement(2-99)
Size(L*W*H) 184*77*105mm
Weight About 600g
Power source Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Interface USB
Data memory Standard 500 Pcs, Sample 20000 Pcs
Language Chinese,English
Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard Accessory Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover.
Optional Accessory Micro Printer, Powder Test Box, Universal test components, Locating Plate
Notes: The specifications are subject to change without notice.



Additional information

Weight 3 kg
Dimensions 34 × 13 × 29 cm
